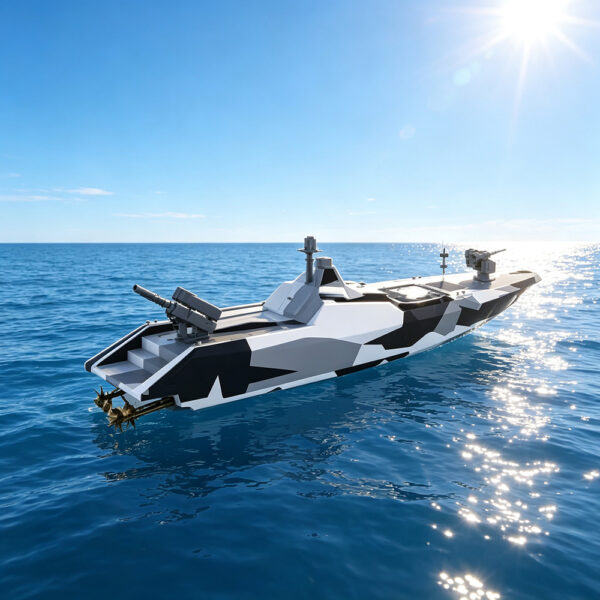

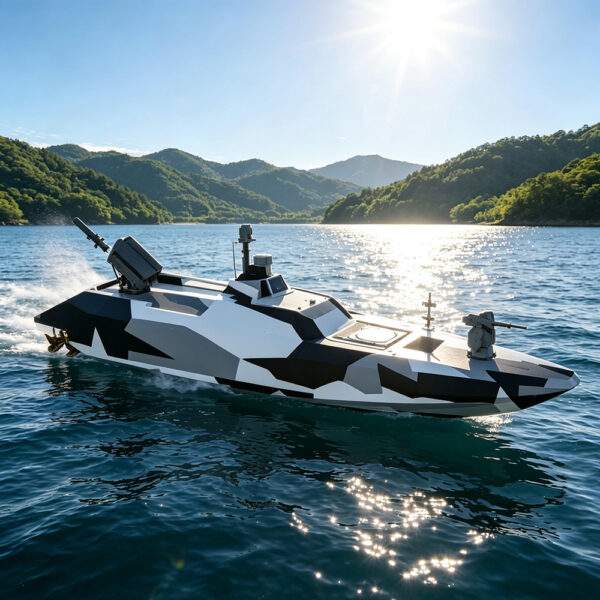

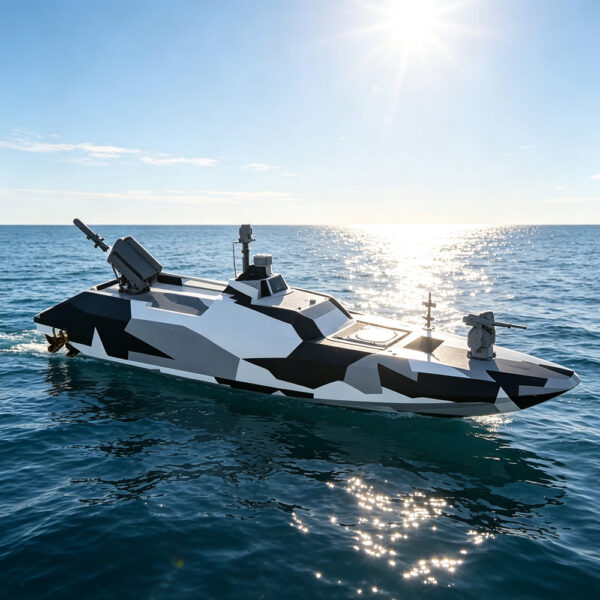

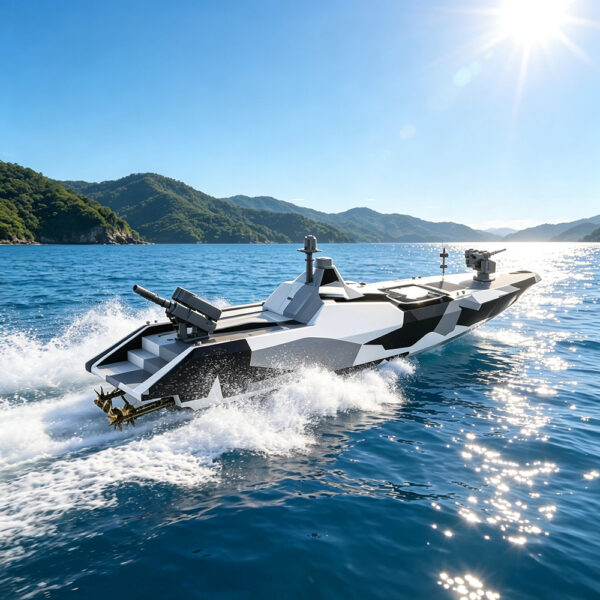

SA09 Large-Scale Air-Sea Collaborative Multi-Function Operation Platform USV

Large-scale air-sea collaborative multi-function operation platform with large payload design, supports multi-vessel collaborative operations

Original price was: $356,000.00.Current price is: $335,000.00.

Notes:
All prices stated are EXW reference prices only.
Final quotation depends on your customized specifications and order quantity. OEM & ODM customization available.

In Stock

Guaranteed Safe Checkout

Key Features:
1. Large-scale unmanned operation platform with multiple control mode switching for flexible and convenient operation
2. Integrated with dedicated UAV hangar for air-sea collaborative operations and data interconnection
3. Can be equipped with various mission payloads such as electro-optical reconnaissance, directional deterrence, emergency delivery, firefighting systems
4. Large payload redundancy design to adapt to diverse mission scenario requirements
5. Supports multi-vessel networked collaboration for formation operations and emergency response missions

Applications:
Suitable for maritime patrol & law enforcement, anti-smuggling management, deterrence & alert, offshore security, emergency response and other missions; applicable for coastal defense security, maritime law enforcement, counter-terrorism drills and other fields

Weight 3100 kg
Dimensions 17.16 × 3.5 × 3.8 m
Application Scenarios

Multi-functional USV

Hull Type

Air-Sea Integrated Weapon Platform, Deep-V Planing Hull

Hull Material

Composite / Aluminum Alloy

Draft

0.79m

Displacement

14t

Rated Occupancy

0 persons

Rated Payload

2500kg

Max Speed

>=40-50kn

Max Range

>=300NM@cruise; >=750-1000NM@low speed

Main Engine Type

Diesel Engine

Propulsion System

Surface Drive / Waterjet

Propulsion Configuration

Customizable

Remote Control Range

Customizable

Communication Method

Customizable

Applicable Waters

Inland Rivers, Seas

Operating Sea State

Sea State 3

Survival Sea State

Sea State 5

IP Rating

IP67
